起源の場所:
中国本土
ブランド名:
FMS
証明:
ISO CE
モデル番号:
二重層
ビデオ
ビデオ

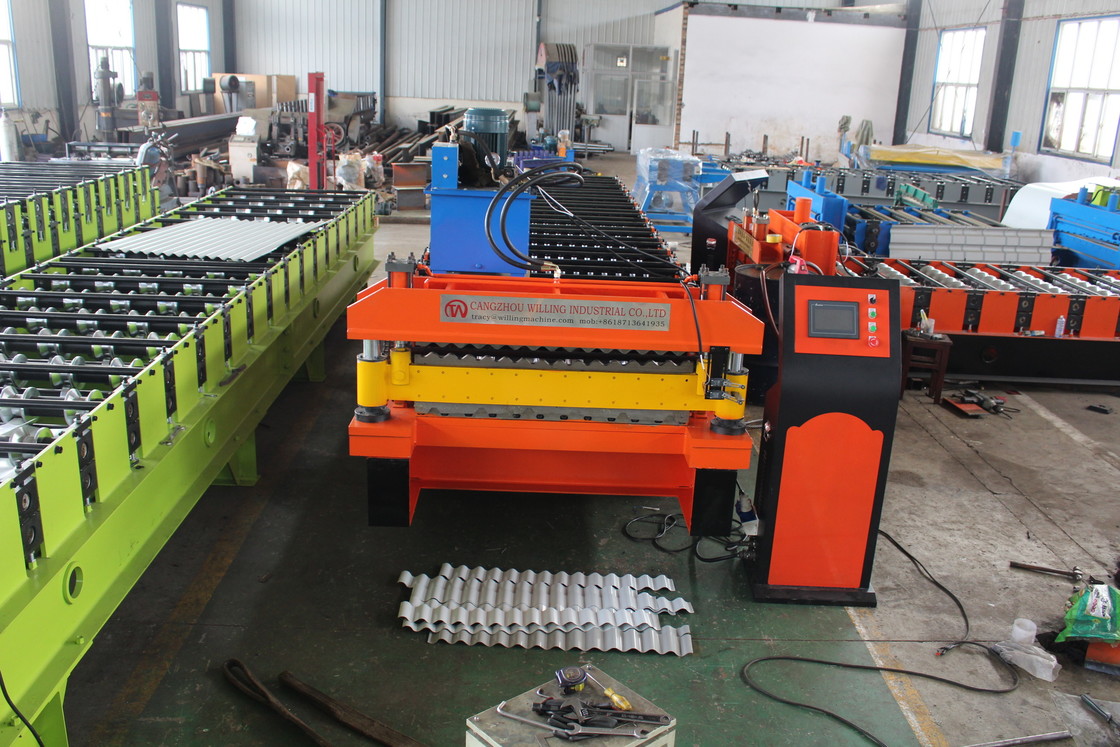

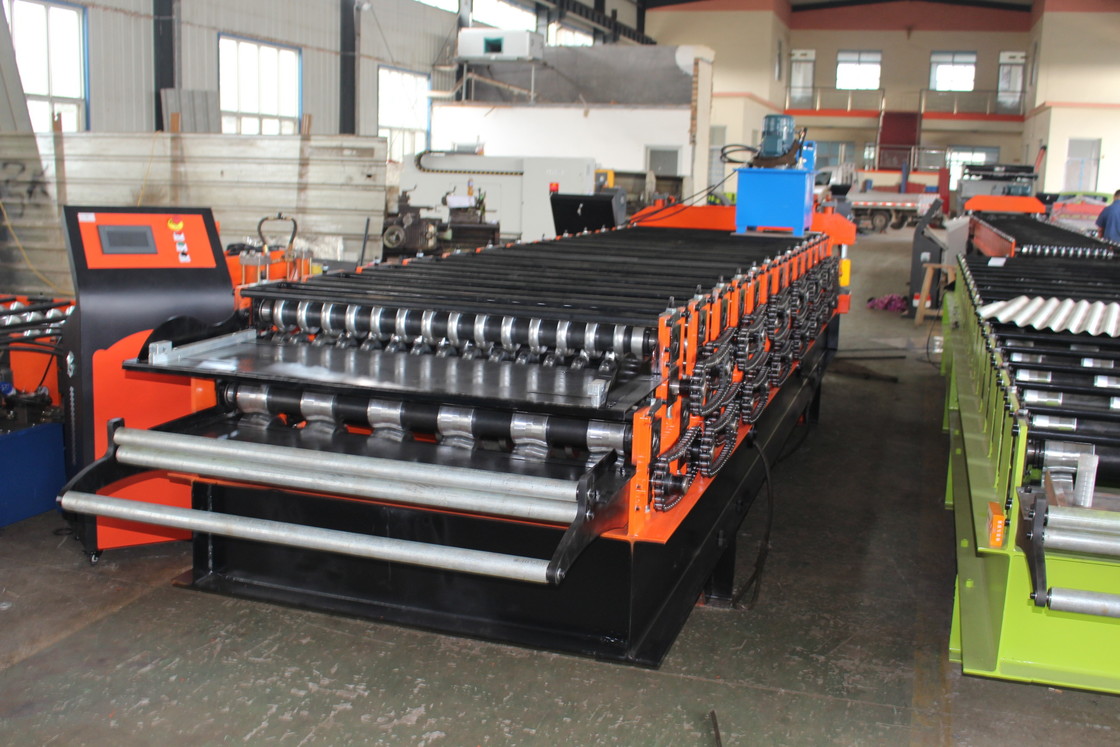

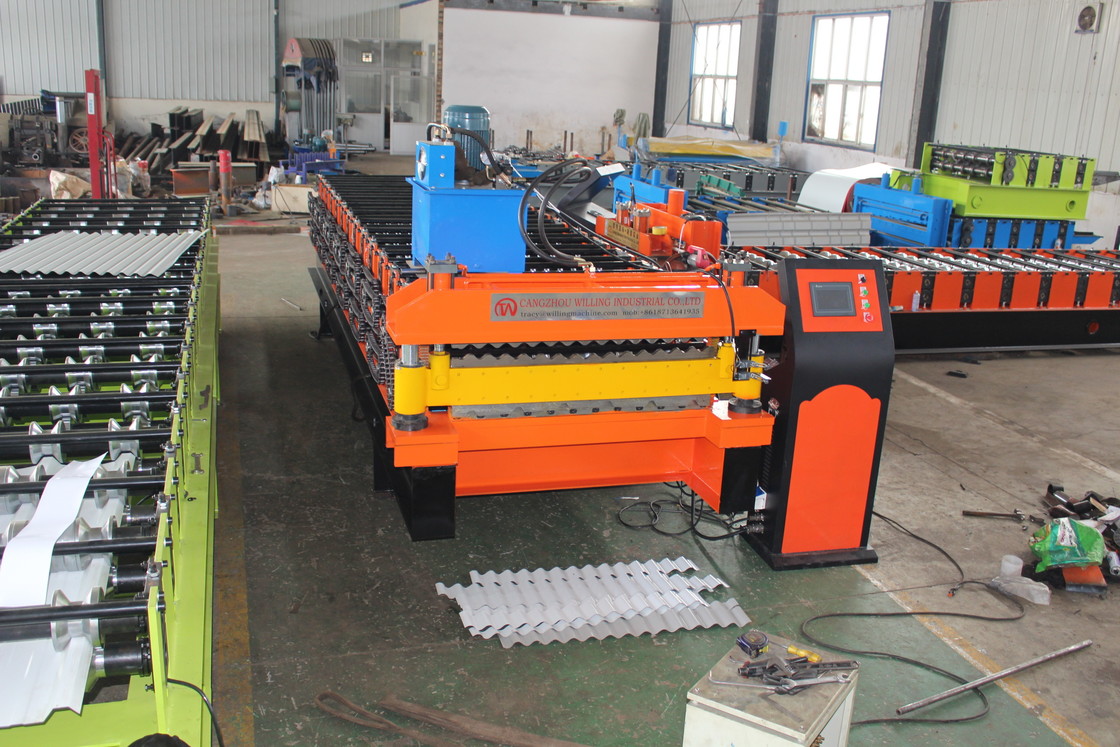

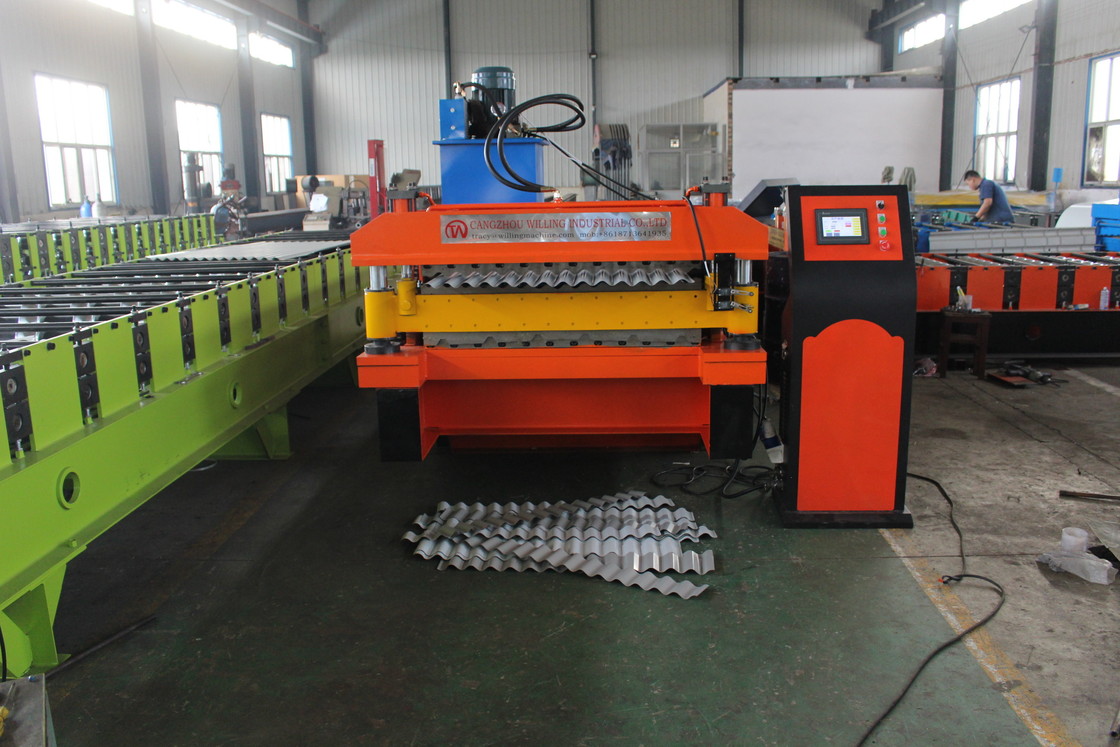

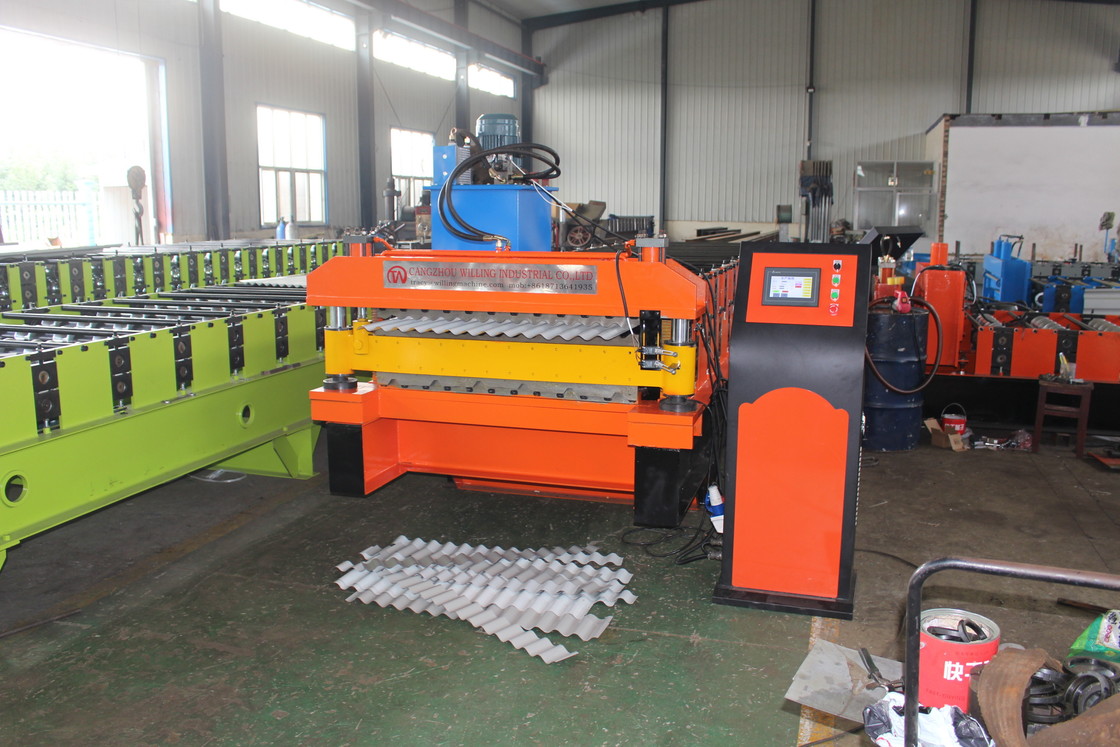

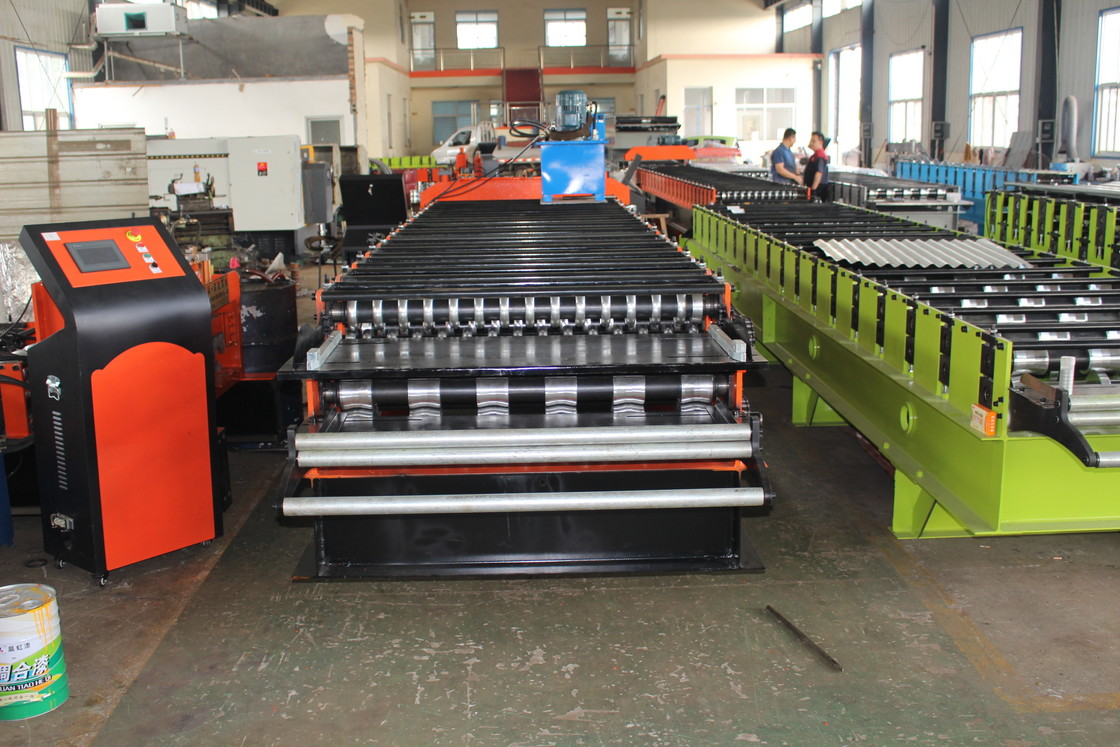

2025 Hot Sale Trapezoidal and Glazed Double Layer Roof Sheet Roofing Tile Forming Machine
2025 Factory Price Trapezoidal and Glazed Double Layer Roof Sheet Roofing Tile Roll Forming Machine
Double Layer Roof Roll Forming Machine 840 Trapezoidal And 836
CANGZHOU FAMOUS CO., LTD products mainly include trapezoidal steel roof/wall panel machine, C&Z shape purline machine, high-way guardrail machine, sandwich panel production line, deck forming machine, C U L light keel machine, shutter slat door forming machine, cutting machine, downpipe machine, gutter machine, etc.
| Part details | Item Name | Specification |
|---|---|---|
| Manual uncoiler | carrying capacity | tons |
| Stype | Manual | |
| Raw coil | Coil material | steel |
| Coil thickness | 0.3-0.8 mm | |
| Machine body | Roller station | 15 station |
| Roller material | 45# steel | |
| Shaft material | 45# steel | |
| Shaft diameter | 75 mm | |
| Machine weight | About 8.5 tons | |
| Machine size | 5-7.5*1.3*1.3 m | |
| Speed | 8-15 m/min | |
| Cutter | Operate | Hydraulic cutting |
| Blade material | Cr12 | |
| Power | Operate | Chain transmission |
| Chain size | 1 inch chain | |
| Control system | PLC brand | Taiwan delta |
| Motor power | 7.5 kw | |
| Hydraulic pump power | 4 kw | |
| Voltage | 380V 50Hz 3phase | |
| Machine color | As ur need | |
| Machine language | Chinese and English |
