家へ > 製品 > 機械を形作る CZ の母屋ロール >

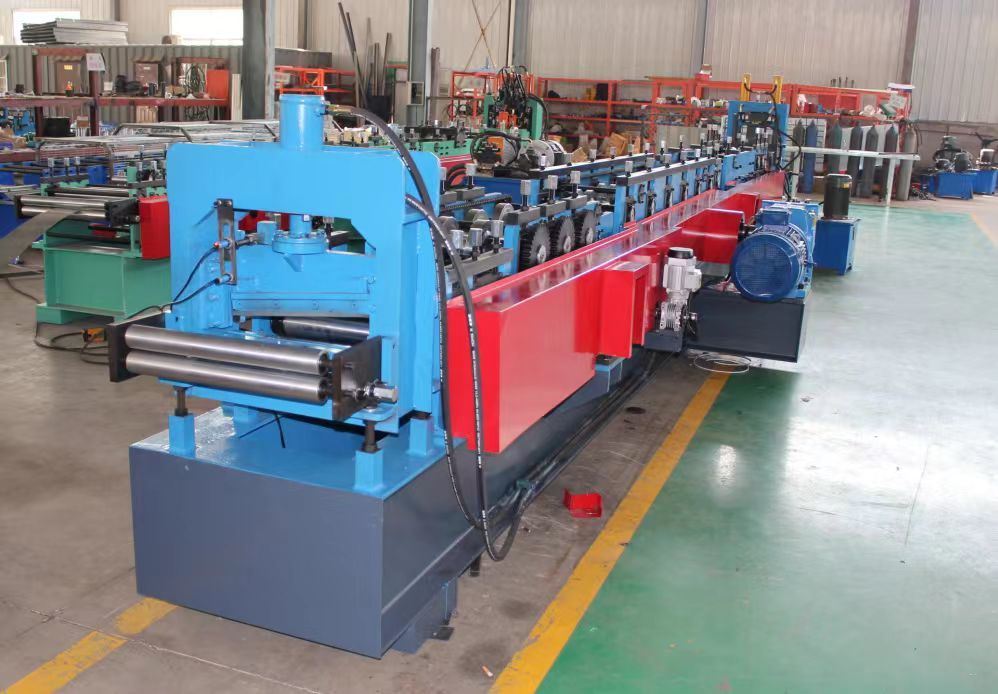

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

High Efficiency CZ Purlin Roll Forming Machine

45# Steel Rollers Purlin Roll Former

High Straightness C and Z Purlin Roll Forming Machine

連絡ください

引金を求めてください

製品詳細

電圧:

380V/50Hz/3相

制御システム:

plc

伝染 ; 感染:

チェーンドライブ

刃の材料を切る:

CR12MOV

重さ:

3.5t

サイズ:

7000*1400*1500mm

ローラー:

18 駅

切断長:

どんな長さでも

ハイライト:

High Efficiency CZ Purlin Roll Forming Machine

45# Steel Rollers Purlin Roll Former

High Straightness C and Z Purlin Roll Forming Machine

支払いと送料の条件

最小注文数量

1セット

受渡し時間

30営業日

支払条件

L/C、T/T

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

最良の価格を入手する

ビデオ

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

最良の価格を入手する

ビデオ

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

最良の価格を入手する

ビデオ

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

最良の価格を入手する

連絡ください

86-317-2016816

今連絡してください

製品説明

Metal Structure C/Z/U Shape Purlin Roll Forming Machine

Product Overview

The CZ Purlin Roll Forming Machine is an advanced building material production system designed for large-scale manufacturing of C and Z purlins. With dimensions of 7000×1400×1500mm and weighing 3.5T, this machine delivers fast forming speeds of 8-12m/min with customizable cutting lengths to meet diverse customer requirements.

Key Features

Produces purlins with excellent straightness and uniformity
High-quality alloy steel rollers and shafts, quenched and tempered
Stable performance with easy operation and high efficiency
PLC control system for precise operation
Hydraulic cutting system for customizable lengths

Technical Specifications

Parameter	Specification
Material Compatibility	Galvanized Steel
Thickness Range	1.5-3.0mm
Roller Material	45# Steel
Machine Dimensions	7000×1400×1500mm
Cutting System	Hydraulic
Control System	PLC
Transmission	Chain Drive
Roller Stations	18 Stations

Applications

This machine is ideal for steel frame construction and purlin manufacturing, capable of processing materials with high precision and speed. Its adjustable rollers allow for creating various shapes and sizes, making it a versatile solution for structural steel component production.

Support & Services

Professional installation and commissioning
Comprehensive troubleshooting support
Operator training and safety guidance
Maintenance and repair services
Machine upgrades and customization

Packaging & Shipping

Machines are securely packaged in wooden crates and shipped via air, land, or sea. Each unit includes an instruction manual and tool set.

Frequently Asked Questions

What is a CZ Purlin Roll Forming Machine?

Industrial equipment for automatically forming and cutting structural steel components including C, Z, and U-shaped purlins.

What materials can it process?

Galvanized steel, cold-rolled steel, stainless steel, and aluminum.

What is the production speed?

Up to 40m/min.

What are the main advantages?

High efficiency, low noise, precision operation, and large production capacity.

What power requirements does it have?

380V/50Hz, 3-phase power with total power consumption of 3.2kW.
