起源の場所:
中国
ブランド名:
FMS
証明:
ISO CE
モデル番号:
C89

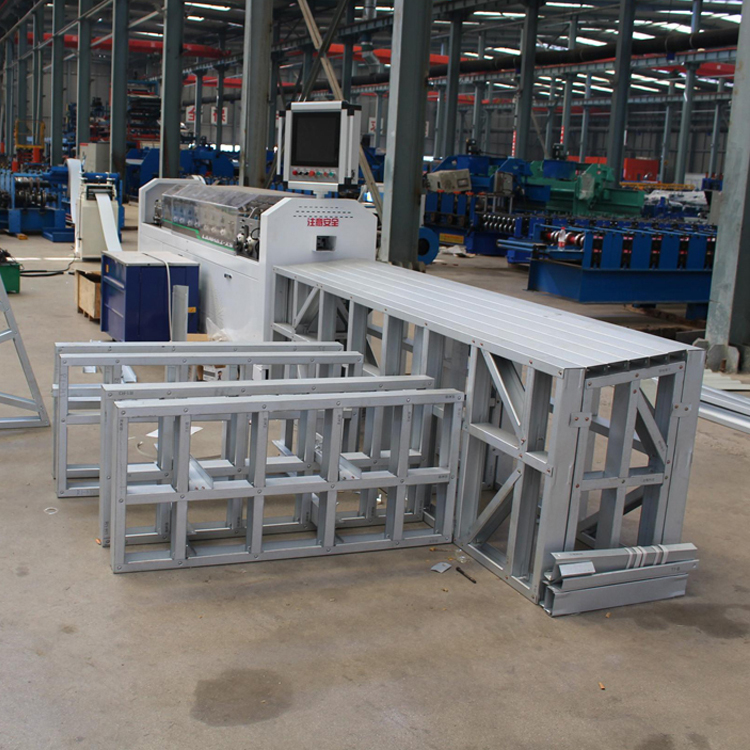

Light gauge steel villa stud cold-forming equipment is a type of roll forming machinery specifically designed to produce the primary structural components--the studs, tracks, and channels--used in Light Gauge Steel Framing (LGSF) for construction, particularly in modern villas and residential buildings. This equipment transforms continuous coils of galvanized steel sheet into precise, high-strength C-sections (studs), U-sections (tracks), and other custom profiles through a cold-forming process.
| No. | Item | Description |
|---|---|---|
| 1 | Coil | Galvalume, Galvanized |
| 2 | Raw Material Thickness | 0.5-1.2 mm |
| 3 | Working Speed | 20-40 m/min |
| 4 | Roller Station | 9 Raws |
| 5 | Dimension (L*W*H) | 5800 mm*1000 mm*1500 mm |
| 6 | Machine Weight | 2000 KG |
| 7 | Electrical Control System | Delta PLC (can be customized) |
| 8 | Drive Motor Power | 7.5 KW |
| 9 | Hydraulic Station Power | 4 KW |
| 10 | Power Supply | 380V, 60HZ, 3 PHASES(can be customized) |
| 11 | Cutting Accuracy | ±2 mm |
| 12 | Driving Mode | Single Chain 1 inch |
| 13 | Material of Shaft | 60 mm 45#steel forged |
| 14 | Material of Roller | 45# Steel Finish Machining, Plated Hard |
40% in advance as down payment by TT
60% is paid before the shipment is processed
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
